Steps and walking gratings on industrially prefabricated profiles
Also for industrially prefabricated roof profiles such as Bemo® or Kalzip®, we offer steps and walking gratings in various designs for roof pitches of up to 40 degrees. A grating or sheet metal grating, with a width of 25cm, is installed as a tread on the clamping holders.
If the gratings are connected to one another, a continuous grating system, for example under light bands or solar systems, but also on chimneys or ventilation systems, can be created.
With test certificate from TÜV-Süd and approval according to EN 516-1.

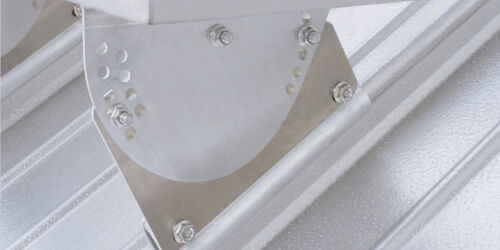

Step holder LA-1550 for round head profiles adjustable from 0 - 40 degrees.
Step holder for round head profiles for grates up to a maximum width of 500 mm and a maximum roof pitch of 40 degrees.
Step holder for round head profiles with grating and agraffes for fastening.
