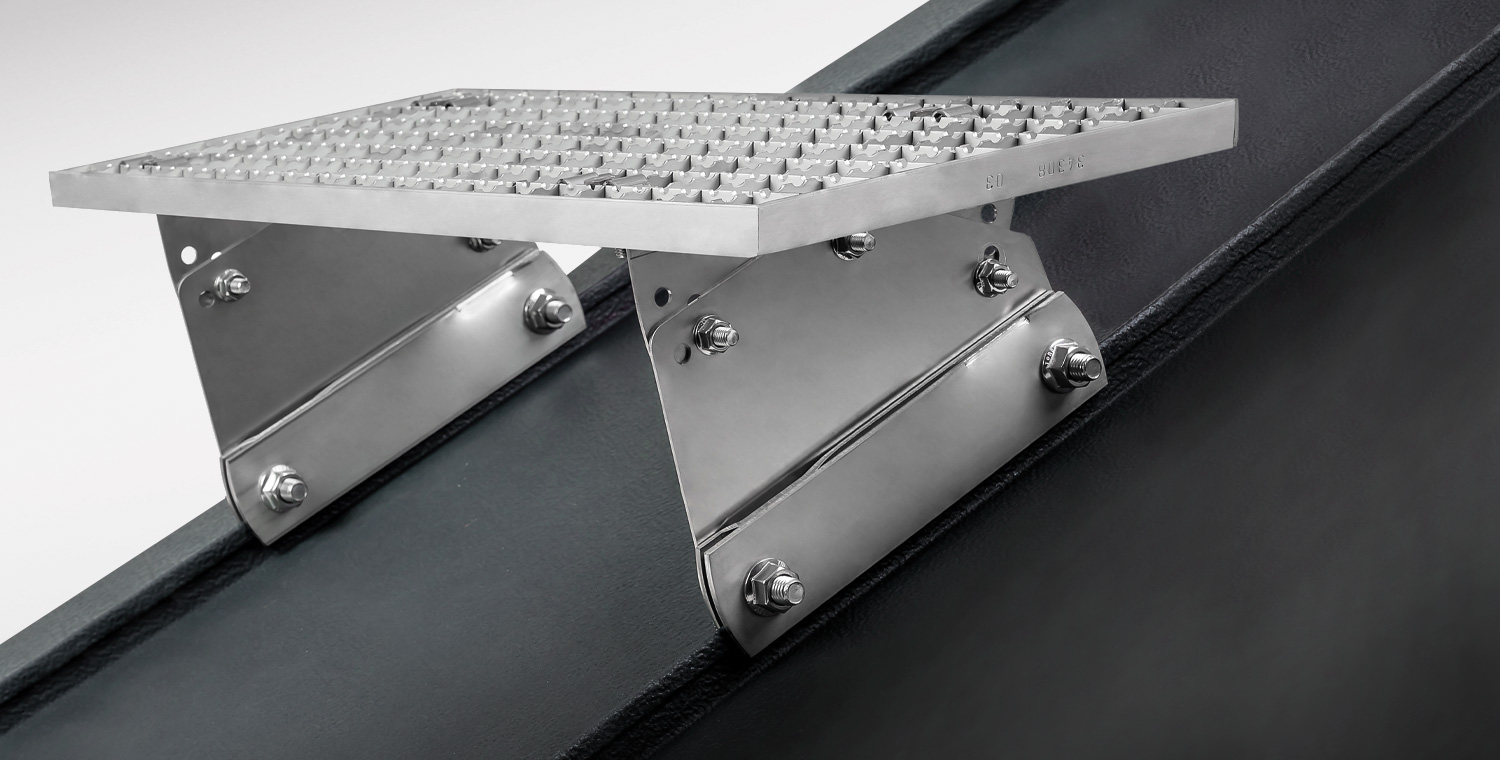

Step holder for standing seam

Steps and walking gratings are usually mounted transversely to the roof covering on the standing seam. The clamp holder offered by us is flexible for roof pitches of up to 40 degrees usable. A grating or sheet metal grating, with a width of 25cm, is installed as a tread on the clamping holders.

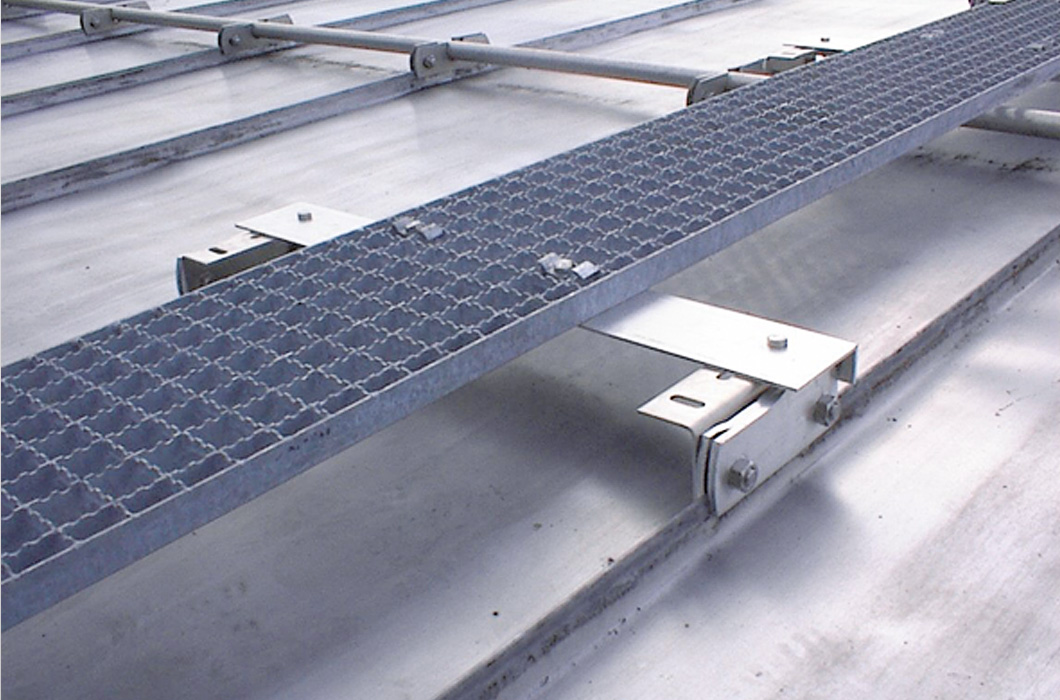

If the gratings are connected to one another, a continuous grating system, for example under light bands or solar system, but also on chimneys or ventilation systems, can be created.

walk-grating-rees

Standing seam bracket for walking gratings mounted parallel to the roof covering

With roof pitches of up to 5 degrees, walking gratings can also be installed parallel to the roofing.
For this we offer you a custom-made solution.

Custom-made for mounting on standing seam roofs, for grating widths up to max. equal to the seam distance.
Set consisting of 2 clamp brackets with angles to be attached and a support angle, at least as long as the seam spacing.

Execution in aluminum

Brackets for Walking gratings up to max. 40 degrees


Do you need a walking grating bracket that should be designed for a fixed roof pitch?
For this we offer you a custom-made solution.

Custom-made for installation on standing seam roofs, for grating widths up to 300 mm. Set consisting of 2 clamping brackets with an angle part to be attached. Made in aluminum, copper and stainless steel.

Execution in aluminum, copper and stainless steel
